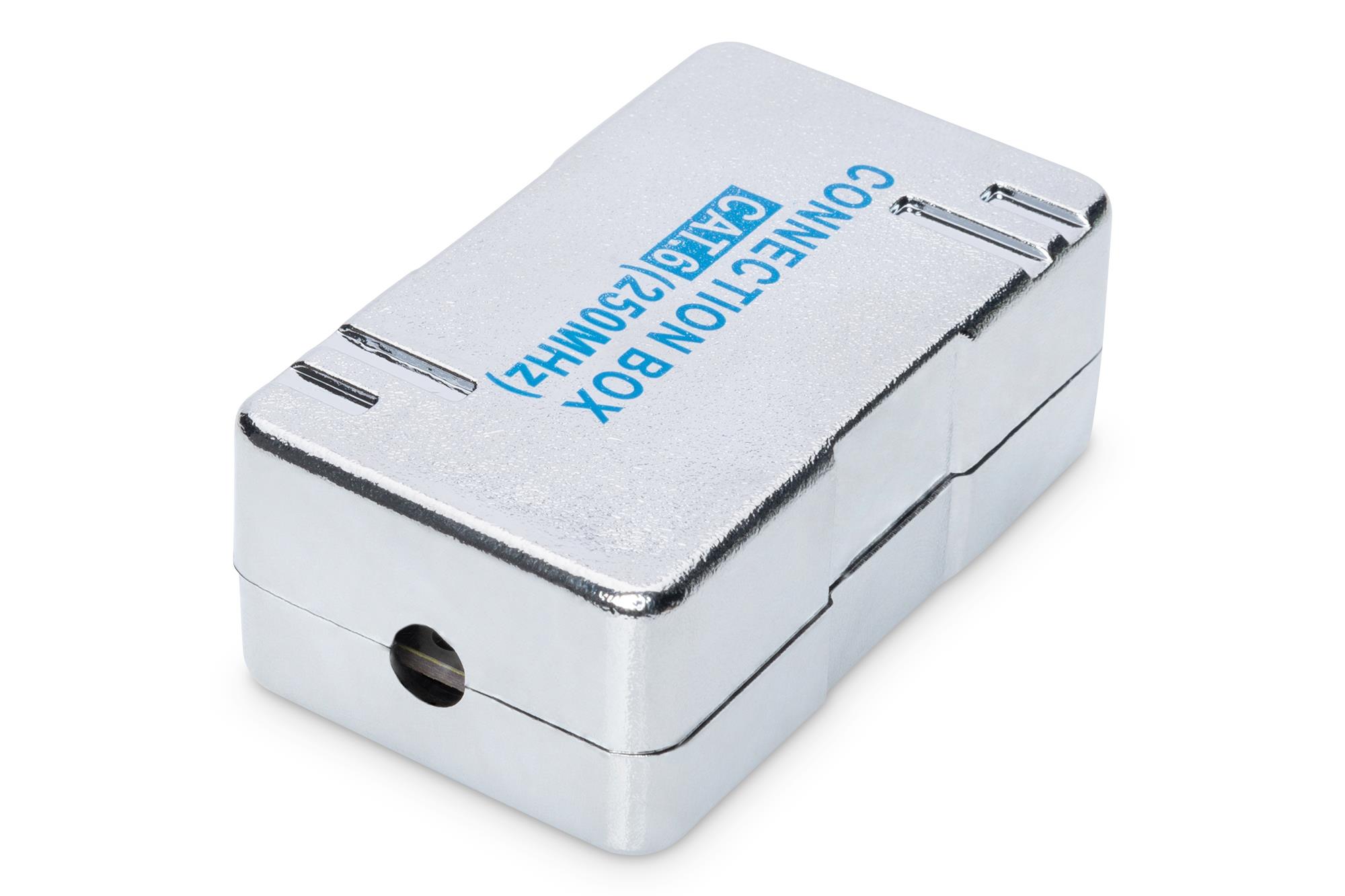

Соединитель LSA, CAT 6, STP DIGITUS by ASSMANN DN-93903

DIGITUS CAT 6 Connection module for Twisted Pair Cables
connection module for twisted pair cables LSA, shielded, CAT 6
Future-oriented standards and high-end quality for your network.

• Transmission properties: Category 6
• Area of application: Up to 250 MHz, 1GBase-T
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for installation in trunking, surface and flush mount
• Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
• Suitable for connection of installation cables - extension of cables, replacing of defect cable links
• Integrated strain relief for installation cables
• Suitable for cables with AWG 22-26 diameter
• Technical properties:
• Housing material: ABS UL-94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 shielding: Tinned bronze
• LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
